Live tools
Try it right here
Everything below runs on this page. No sign-up to look around.
Read a plan set

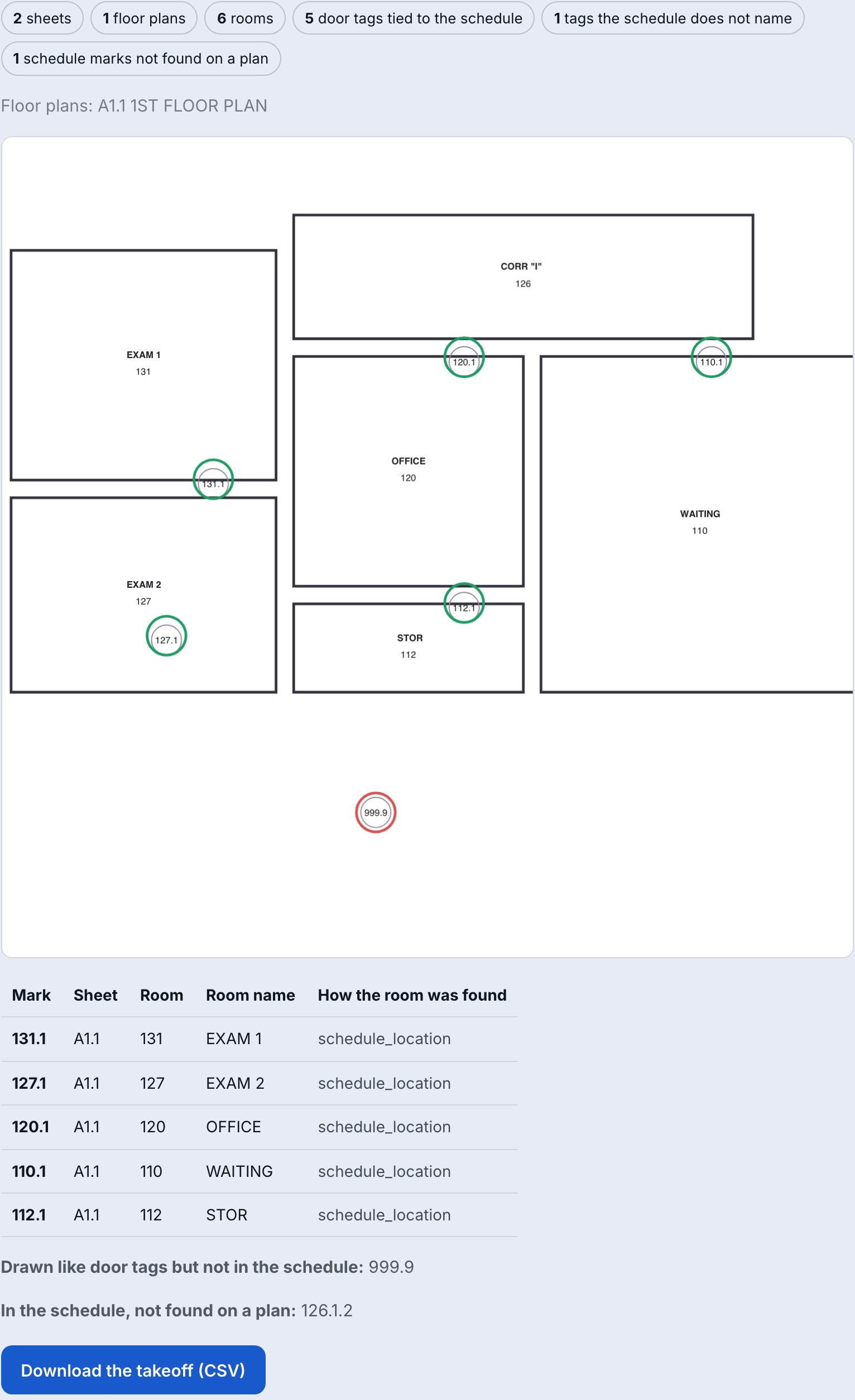

Choose a PDF (or use the sample), paste the schedule, and read the takeoff. Green circles are tags tied to the schedule; red ones are not in it.
Your PDF is read in this tab and never uploaded.
What it reads
- Title blocks: every sheet's number and title, so floor plans are told apart from demolition, ceiling and life-safety plans.
- Rooms: names over numbers on each floor plan, with corridors marked.
- Door tags: tokens drawn like tags and named by a schedule mark, with the room each door opens into and how that room was found.
- Gaps: tags no mark names, and marks no plan shows.
